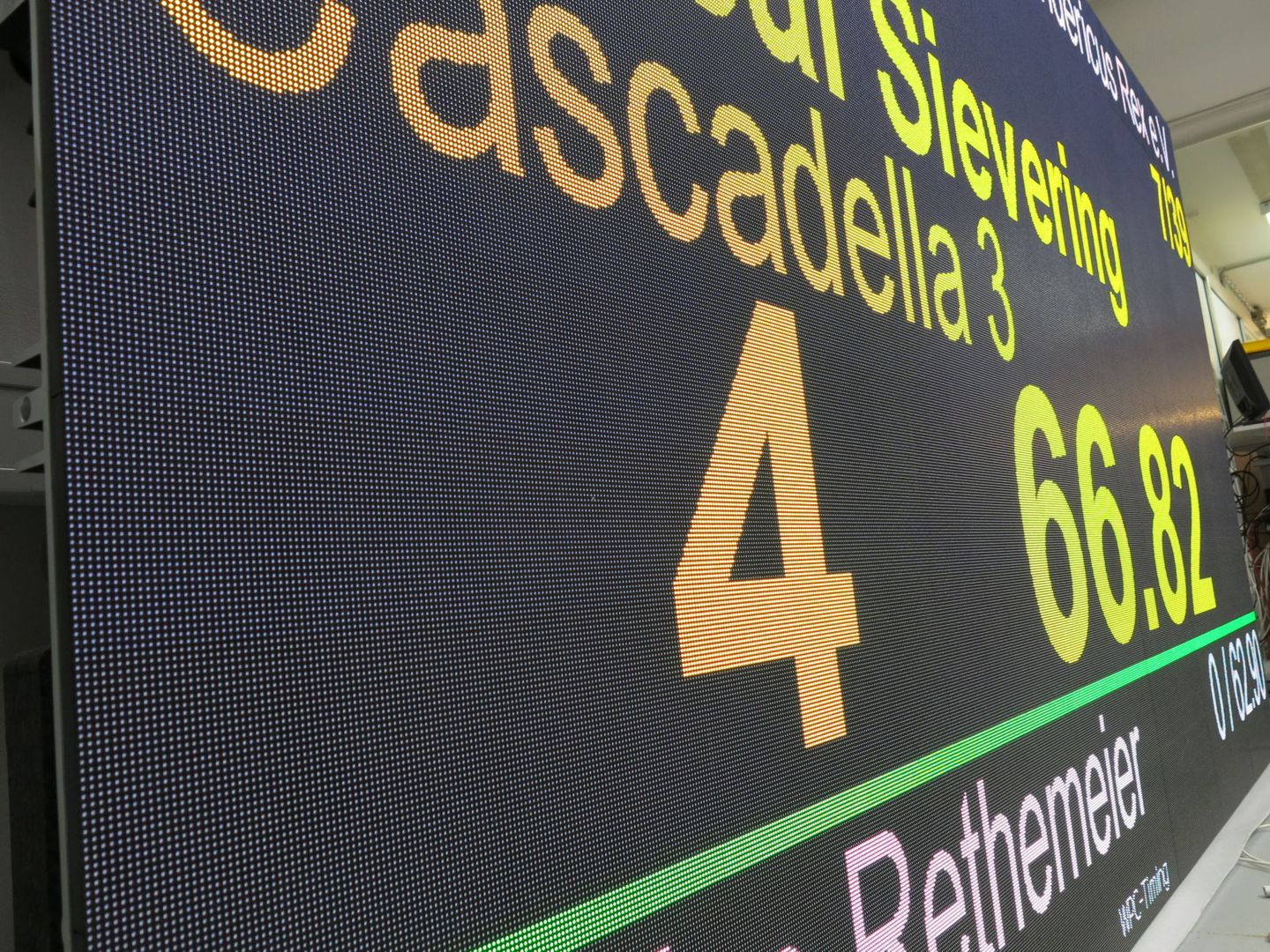

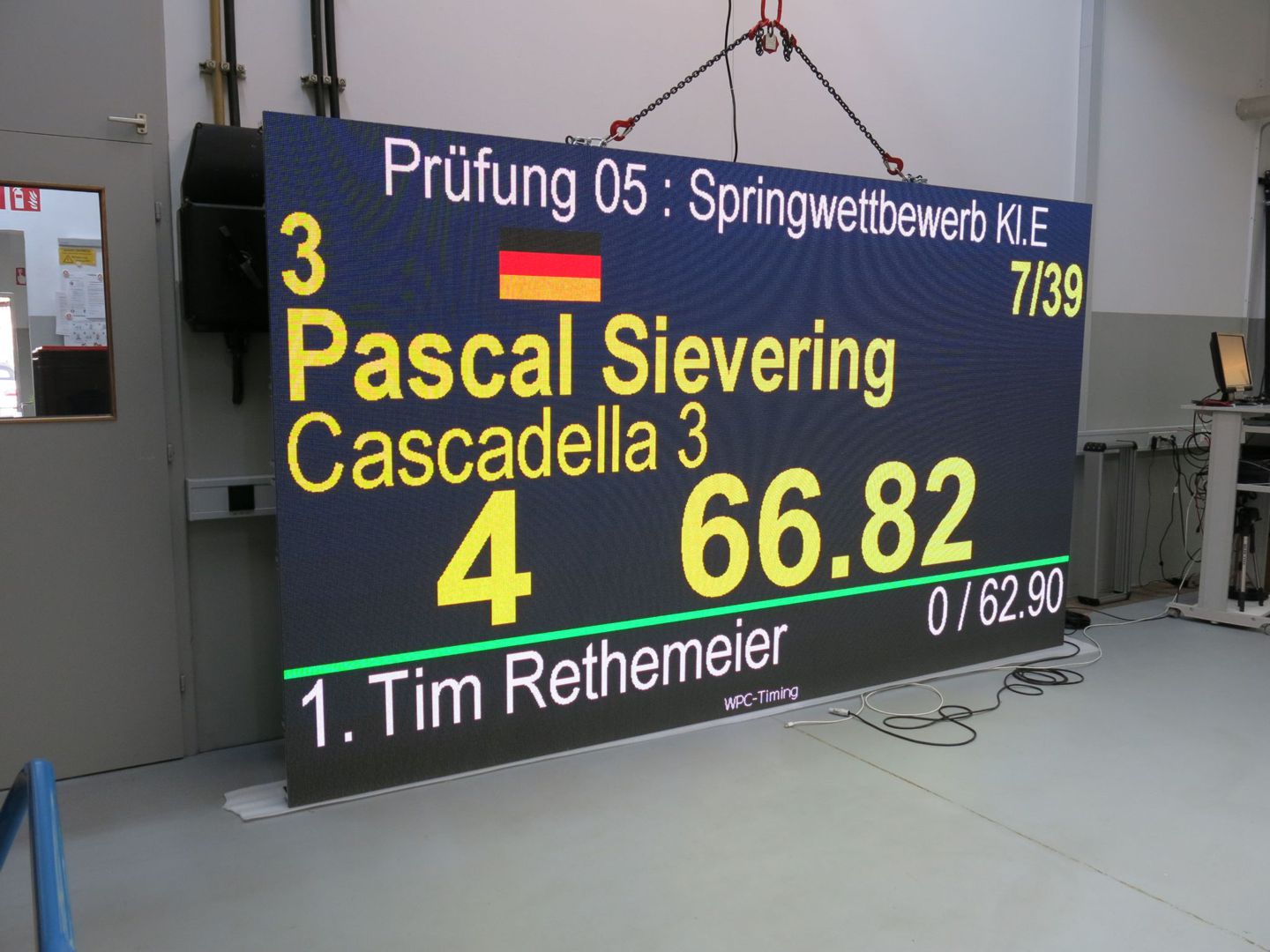

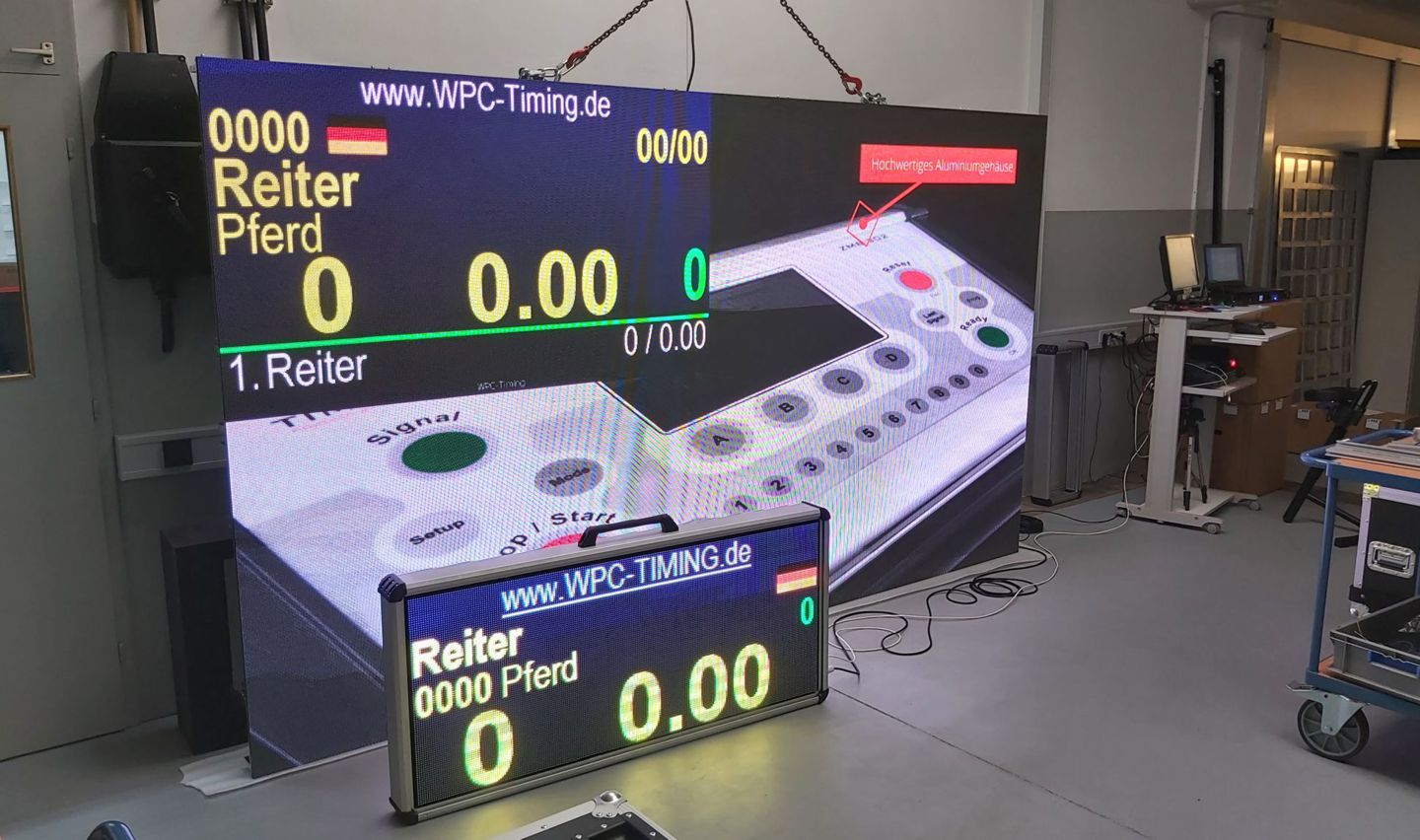

WPC timing full color LED video wall P3.91 outdoor

Full color LED video wall - mobile
ANZ420LED P3.91 - outdoor

High-quality video system from Unilumin

Pixel pitch: 3.91 mm
Screen resolution depends on the display area or number of modules.
e.g.: 3.5 mx 2 m = 7m² = 892 x 512 pixels
Pixel density: 65535 px / m²
Brightness: 4,500 to 5,000 cd/m²
LED Type: 3-in-1 Black SMD

Available in 2 module sizes to suit your desired size
available:

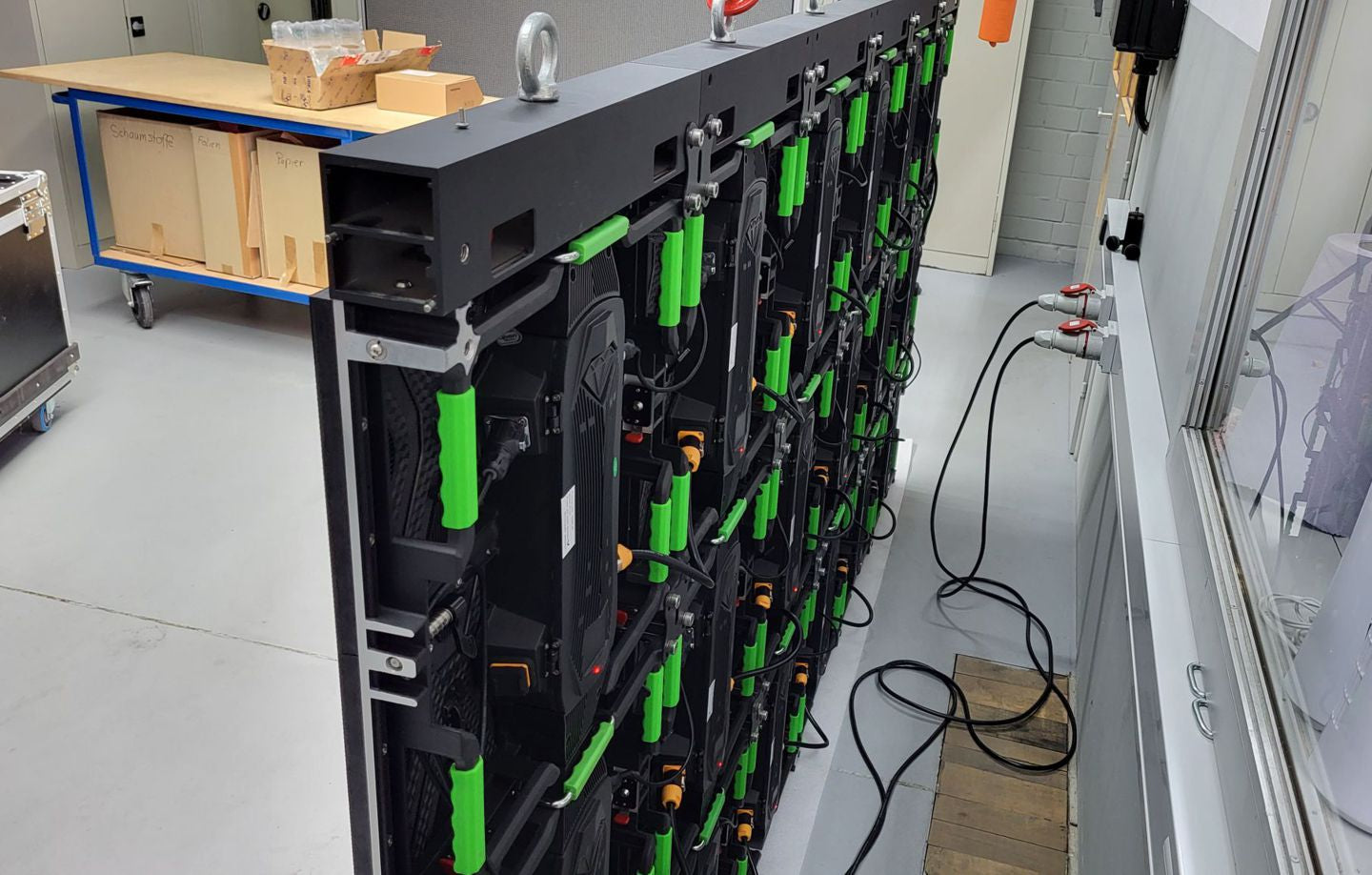

500 x 500 mm : 7.5 kg | 170W max per module

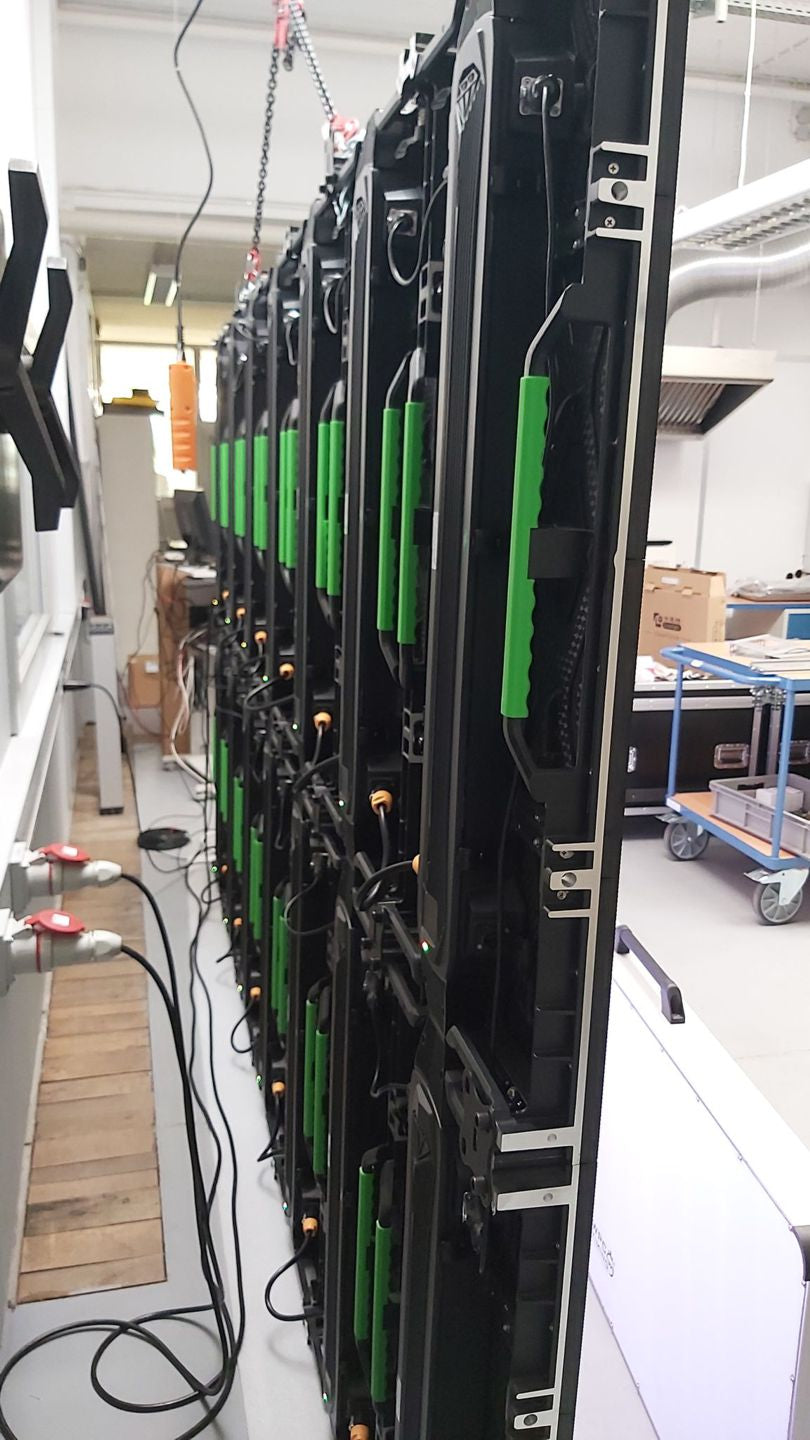

500 x 1000 mm : 13.2 kg | 335 W max. per module
Protection class IP65
Material: Aluminum housing
Structure/Connection:
Plug-in bayonet and screw plate connectors

Novastar video system

To control the video wall, a suitable video controller with HDMI or DVI signal input is required and can be ordered separately in our shop. We are happy to advise you.

Certifications : TÜV/CE/CB/FCC/IC/UL
Power connection : CEE 400V / 16A / 32A depending on display size. Installation will be arranged upon request. Additional costs may apply.

Further technical data available upon request.
Other sizes and resolutions available upon request .

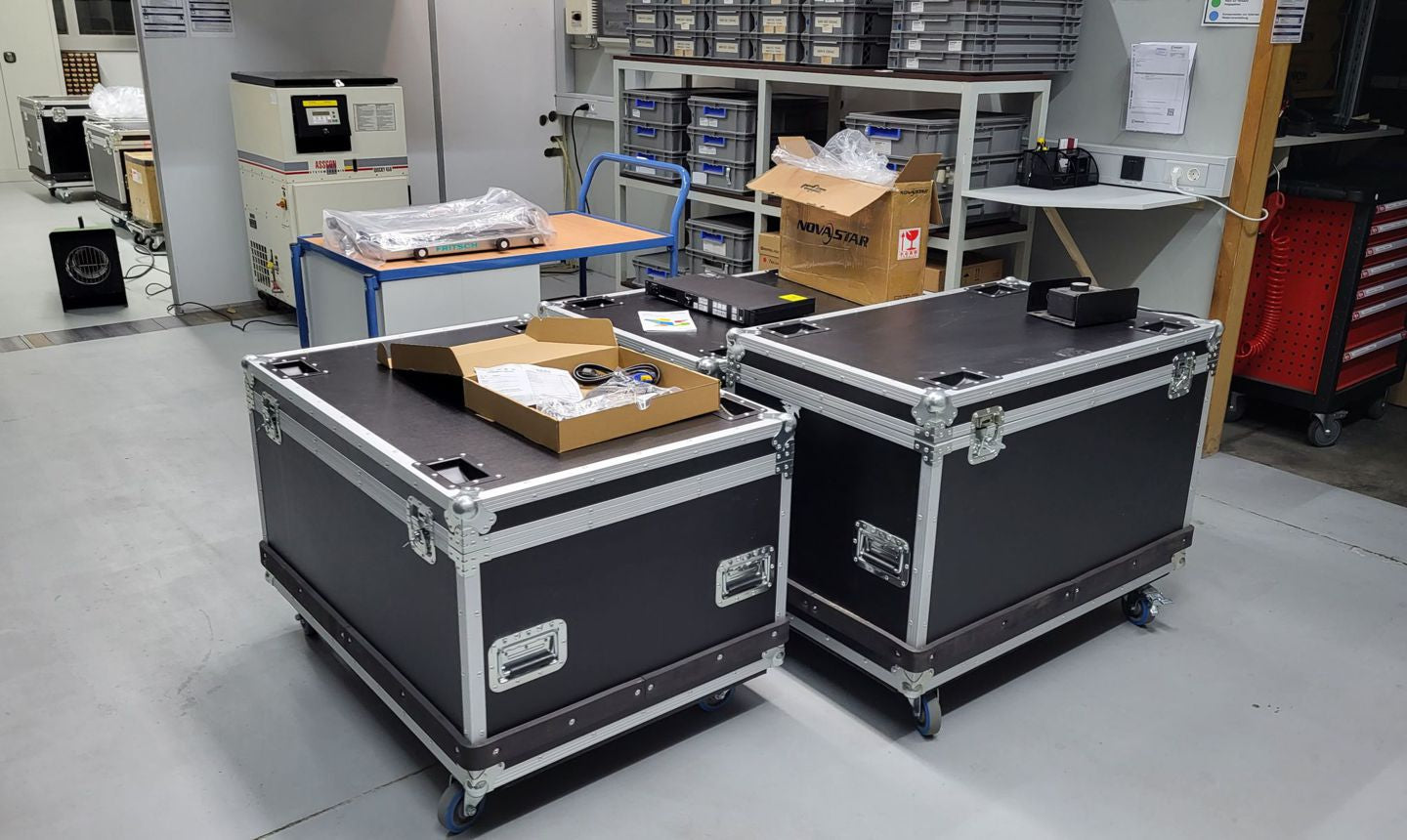

We deliver via freight forwarding company in special transport trolleys .

Without mounting hardware. This can be ordered separately as an option.

The structural design and statics, depending on the design, are the responsibility of the customer and are not included in the price .
