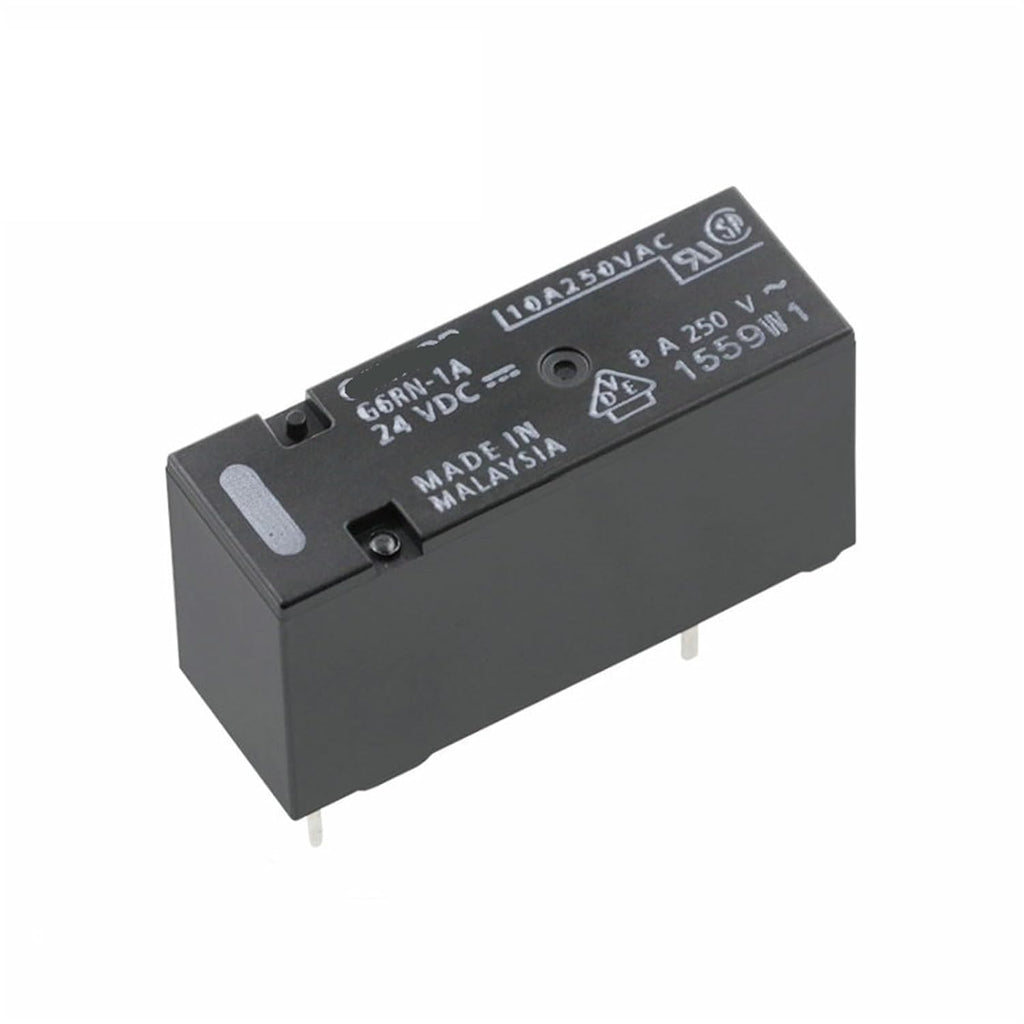

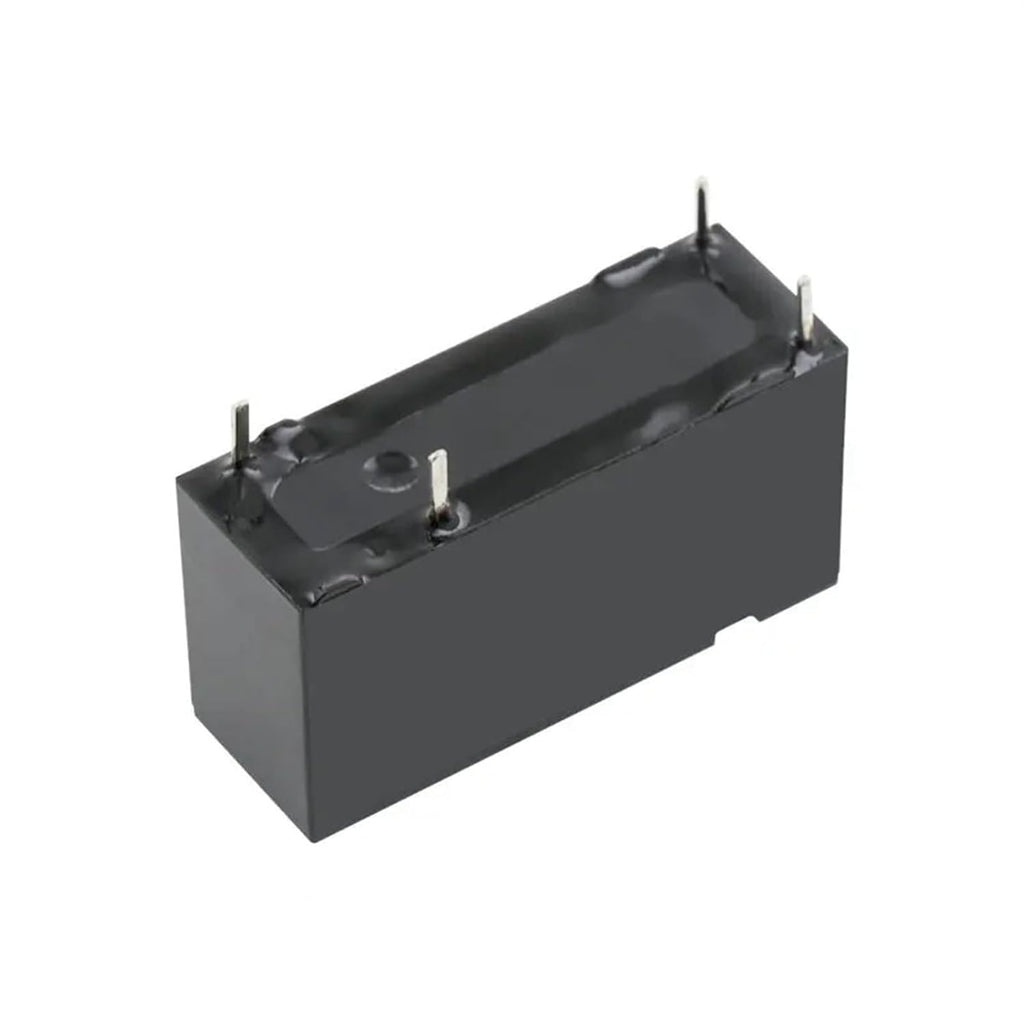

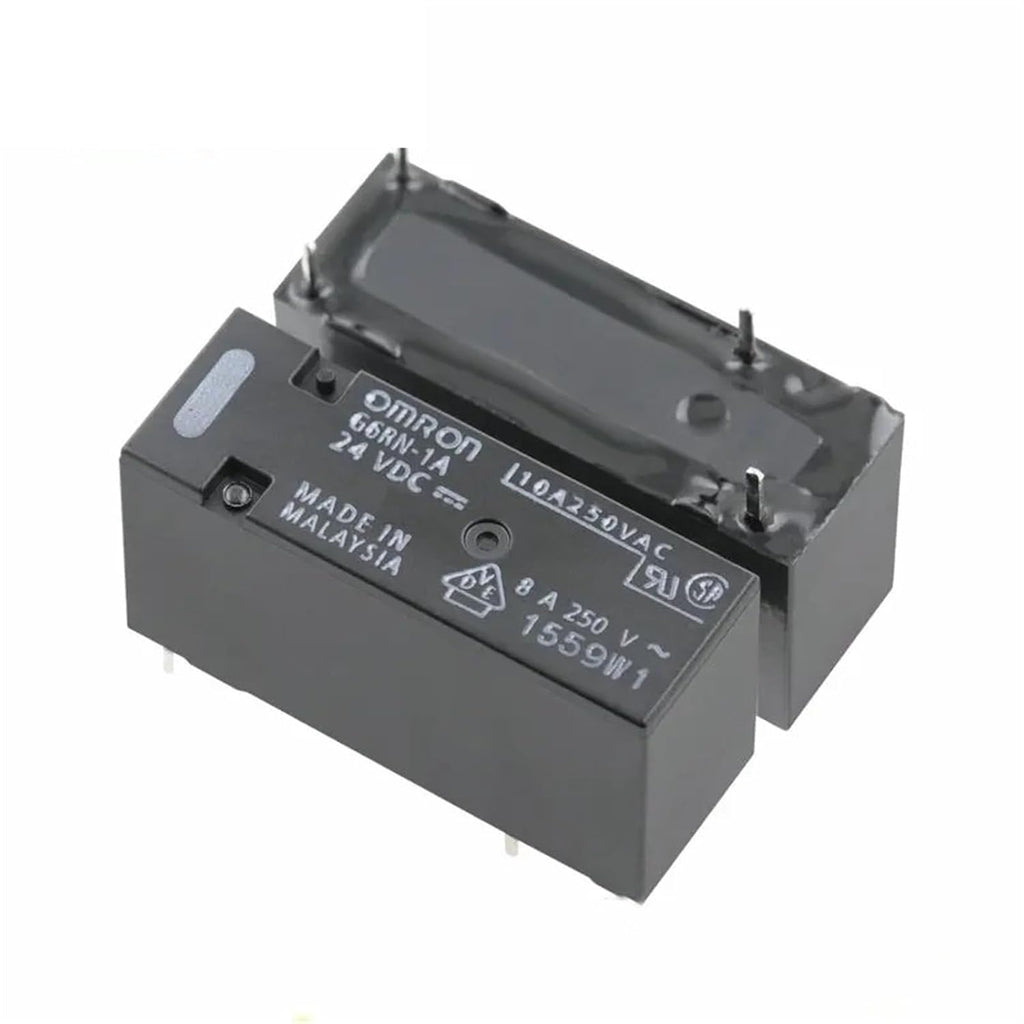

Omron G6RN-1A-DC24 Power Relay 24 V/DC 8 A 1 Normally Open Contact
  • Omron G6RN-1A-DC24 Power Relay 24 V/DC 8 A 1 Normally Open Contact
  • Omron G6RN-1A-DC24 Power Relay 24 V/DC 8 A 1 Normally Open Contact
  • Omron G6RN-1A-DC24 Power Relay 24 V/DC 8 A 1 Normally Open Contact
Omron G6RN-1A-DC24 Power Relay 24 V/DC 8 A 1 Normally Open Contact

Omron G6RN-1A-DC24 Power Relay 24 V/DC 8 A 1 Normally Open Contact

1,95€

plus VAT & shipping

Delivery time :

  • available from stock

Production information:

Manufacturer: Omron

Product category: General-purpose relays
Product Type: General Purpose Relays
Subcategory: Relays
Brand: Omron Electronics

Downloads :
Datasheet | Symbol & Footprint by SnapMagic

RoHS : Yes

Product: Power Relays
Type: Miniature

Series : G6RN
Manufacturer No.: G6RN-1A-DC24

Technical data:
Coil voltage: 24 VDC
Relay contact type: 1 Form A (SPST-NO) Normally open
Nominal contact current: 8 A
Contact terminal: Solder pin
Mounting type: Through Hole
Switching voltage: 250 VAC , 30 VDC / 5A
Maximum switching current: 8 A
Coil terminal: Solder pin
Coil type: Non-latching
Coil resistance: 2.62 kOhms
Coil current: 9.2 mA
Power consumption: 220 mW
Response time : 15ms
Release time : 5ms
Contact resistance : 100mΩ
Contact material: Silver Alloy (Ag)

Mass
Length: 28.8 mm
Width: 10 mm
Height: 15 mm

Weight :
Weight per piece: 9 g



Additional Information :

Omron's G6RN product line comprises printed circuit board (PCB) relays. These electromechanical power relays are small, flat, robust standard relays in a miniature design. They offer high insulation thanks to an 8mm insulation distance and a surge voltage withstand of 10kV between the coil and contacts.

  • Monostable
  • Fully sealed plastic construction
  • Contact configurations: SPST-NO, SPDT
  • Approvals: UL and VDE
  • Switching capacity, max.: 8A at 250V AC and 5A at 30V DC
  • Selectable coil voltage: 5V DC, 12V DC, 24V DC, 48V DC
  • High sensitivity with a power consumption of 220mW
  • Meets the requirement for an ambient temperature of 85°C
  • Includes environmentally friendly, cadmium-free contacts

Application

Industry, Automation & Process Control, Power Management, Motor Drive & Control
